UP-250S
Category：
100T-300T
Keywords：
Injection molding machines
Machine mode：
UP-250S

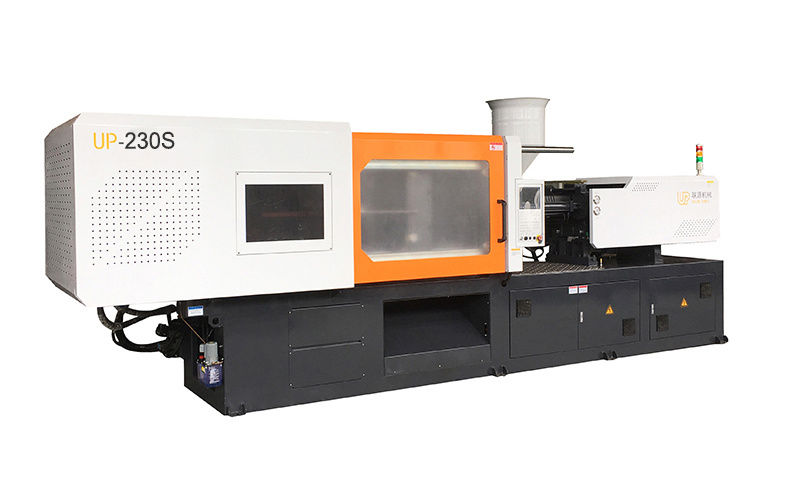

Description : Union Power brand servo motor injection molding machine
Machine condition: new made according to order.
Place of original: Ningbo city, China.
Contact Union Power team for more details:
+86 13705741165 ( phone / wechat / whatsapp )
Product Details
Detailed display
Technical Parameters
| MACHINE MODEL | UP-250S | |||
| International Size Rating | 930/250 | |||
| INJECTION UNIT | A | B | C | |
| Screw Diameter | mm | 50 | 55 | 60 |
| Length/Diameter Ratio | L/D | 23.1 | 21 | 19.3 |
| Theoretical Shot Volume | cm | 481 | 582 | 692 |
| Injection Weight(PS) | g | 433 | 523 | 623 |
| Injection Rate(PS) | g/s | 169 | 198 | 240 |
| Plasticizing Capacity | g/s | 26.8 | 34.5 | 42 |
| Theoretical Injection Pressure | Mpa | 195 | 161 | 135 |
| Maximum Screw Speed | rmp | 0-200 | ||
| Clamping Unit | ||||
| Clamp Tonnage | kN | 2500 | ||
| Toggle Stroke | mm | 500 | ||
| Space Between tie Bars | mm | 580×520 | ||
| Max. Mold Height | mm | 580 | ||
| Min. Mold Height | mm | 220 | ||
| Daylight Opening | mm | 1080 | ||
| Ejector Number | Piece | 9 | ||
| Ejector stroke | mm | 150 | ||
| Ejector tonnage | kN | 100 | ||
| OTHERS | ||||
| System Pressure | Mpa | 16 | ||
| Pump moter Power (servo) | kW | 27.8 | ||
| Heater Power | kW | 14.2 | ||
| Machine Dimension(LxWxH) | mm | 6.0×1.6×2.2 | ||
| Oil tank Capacity | L | 380 | ||
| Machine Weight | t | 7.1 | ||
