Paint bucket injection molding machine
Category：
Paint bucket injection molding machine
Keywords：
Injection molding machines
Application：
Injection molding machine to make paint bucket, round shape, square shape, size from 1L to 30L.
Whole line：
Paint bucket machine+mould+accessories
Machine condition: new made according to order.
Place of original: Ningbo city, China.
Contact Union Power team for more details:
+86 13705741165 ( phone / wechat / whatsapp )
Tel:
Product Details

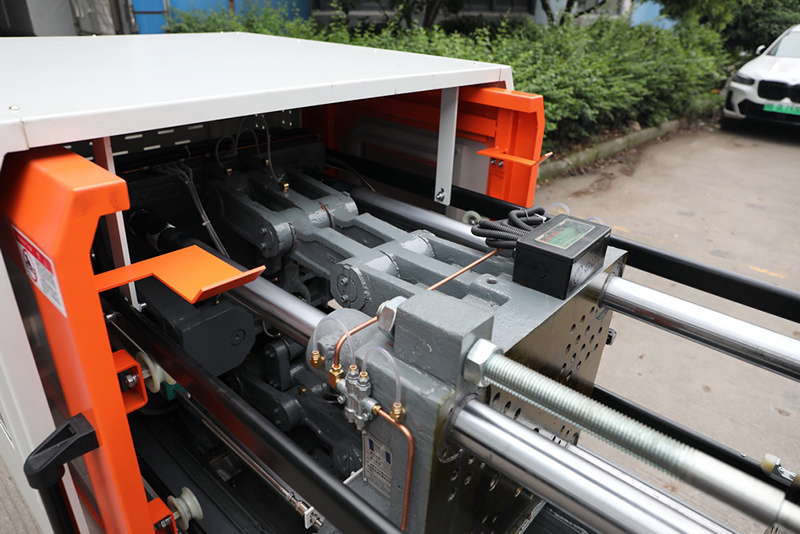

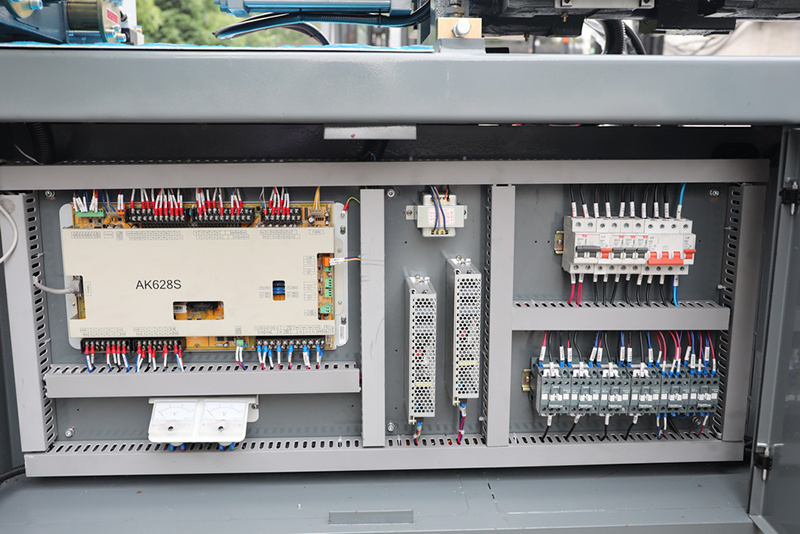

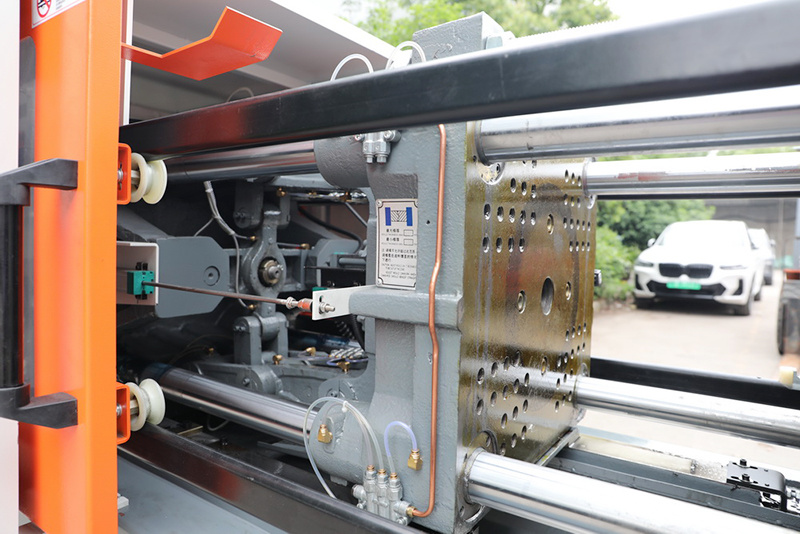

Detailed display
Technical Parameters

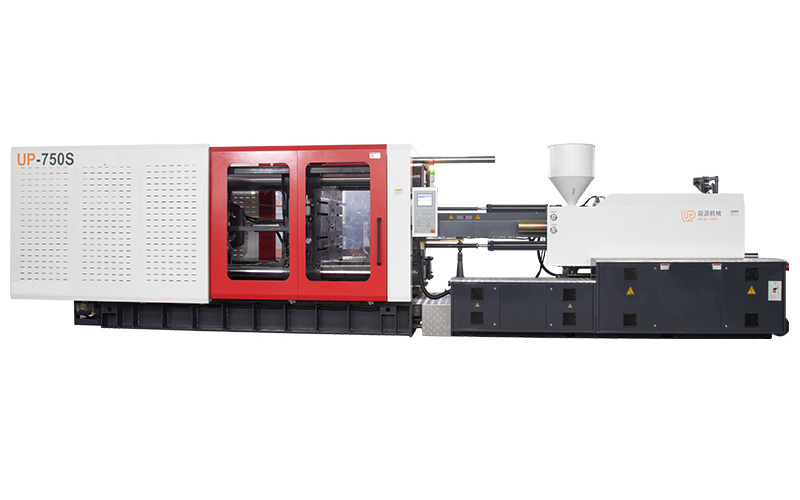

| MACHINE MODEL | UP-750S | |||
| International Size Rating | 5700/750 | |||
| INJECTION UNIT | A | B | C | |
| Screw Diameter | mm | 95 | 105 | 110 |
| Length/Diameter Ratio | L/D | 22 | 19.9 | 19 |
| Theoretical Shot Volume | cm | 3259 | 3982 | 4369 |
| Injection Weight(PS) | g | 2966 | 3623 | 3977 |
| Injection Rate(PS) | g/s | 638 | 780 | 856 |
| Plasticizing Capacity | g/s | 109 | 136 | 162 |
| Theoretical Injection Pressure | Mpa | 174 | 144 | 130 |
| Maximum Screw Speed | rmp | 0-140 | ||
| Clamping Unit | ||||
| Clamp Tonnage | kN | 7500 | ||
| Toggle Stroke | mm | 950 | ||
| Space Between tie Bars | mm | 980×950 | ||
| Max. Mold Height | mm | 1000 | ||
| Min. Mold Height | mm | 400 | ||
| Daylight Opening | mm | 1950 | ||
| Ejector Number | Piece | 17 | ||
| Ejector stroke | mm | 260 | ||
| Ejector tonnage | kN | 185 | ||
| OTHERS | ||||
| System Pressure | Mpa | 16 | ||
| Pump moter Power (servo) | kW | 39.7+36.5 | ||
| Heater Power | kW | 56.7 | ||
| Machine Dimension(LxWxH) | mm | 10.8×2.3×2.9 | ||
| Oil tank Capacity | L | 1300 | ||
| Machine Weight | t | 42 | ||
