UP-200S
Category：
100T-300T
Keywords：
Injection molding machines
Machine mode：
UP-200S

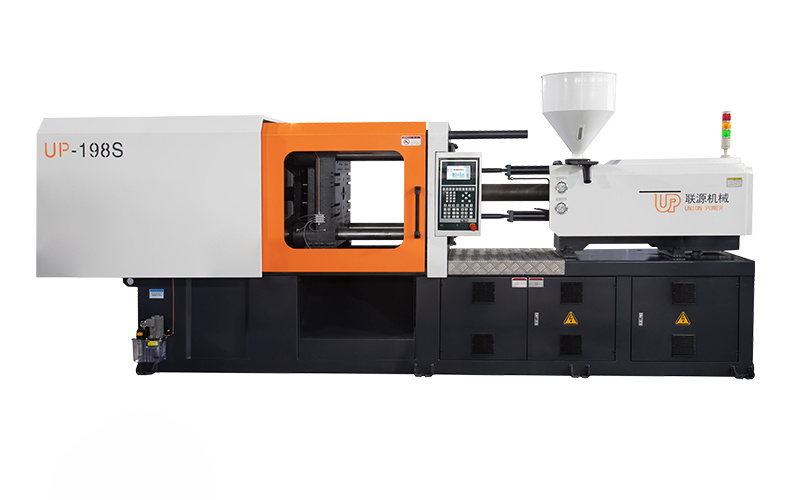

Description : Union Power brand servo motor injection molding machine
Machine condition: new made according to order.
Place of original: Ningbo city, China.
Contact Union Power team for more details:
+86 13705741165 ( phone / wechat / whatsapp )
Product Details
Detailed display
Technical Parameters
| MACHINE MODEL | UP-200S | |||
| International Size Rating | 550/200 | |||
| INJECTION UNIT | A | B | C | |
| Screw Diameter | mm | 42 | 45 | 50 |
| Length/Diameter Ratio | L/D | 22.8 | 21.3 | 19.2 |
| Theoretical Shot Volume | cm | 346 | 397 | 490 |
| Injection Weight(PS) | g | 311 | 357 | 440 |
| Injection Rate(PS) | g/s | 139 | 160 | 199 |
| Plasticizing Capacity | g/s | 21 | 26 | 33 |
| Theoretical Injection Pressure | Mpa | 168 | 140 | 118 |
| Maximum Screw Speed | rmp | 0-220 | ||
| Clamping Unit | ||||
| Clamp Tonnage | kN | 2000 | ||
| Toggle Stroke | mm | 450 | ||
| Space Between tie Bars | mm | 520×470 | ||
| Max. Mold Height | mm | 520 | ||
| Min. Mold Height | mm | 220 | ||
| Daylight Opening | mm | 965 | ||
| Ejector Number | Piece | 5 | ||
| Ejector stroke | mm | 140 | ||
| Ejector tonnage | kN | 80 | ||
| OTHERS | ||||
| System Pressure | Mpa | 16 | ||
| Pump moter Power (servo) | kW | 23 | ||
| Heater Power | kW | 9.3 | ||
| Machine Dimension(LxWxH) | mm | 4.95×1.4×2 | ||
| Oil tank Capacity | L | 260 | ||
| Machine Weight | t | 5.7 | ||
