UP-160S
Category：
100T-300T
Keywords：
Injection molding machines
Machine mode：
UP-160S

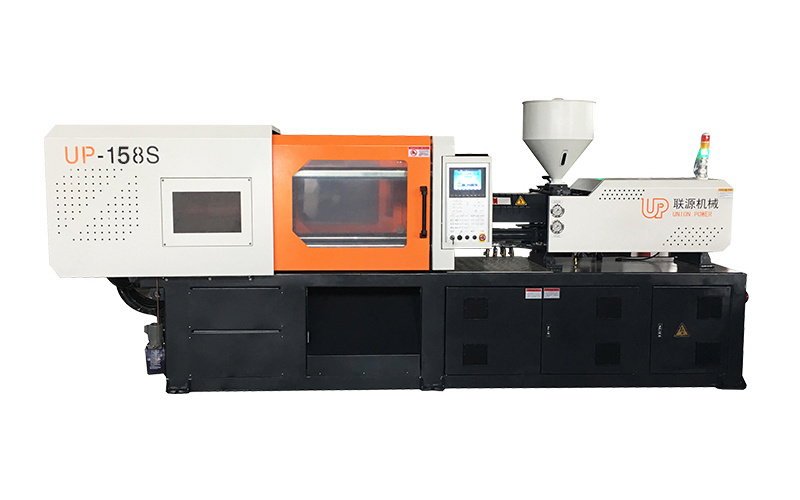

Description : Union Power brand servo motor injection molding machine
Machine condition: new made according to order.
Place of original: Ningbo city, China.
Contact Union Power team for more details:
+86 13705741165 ( phone / wechat / whatsapp )
Product Details
Detailed display
Technical Parameters
| MACHINE MODEL | UP-160S | |||
| International Size Rating | 530/160 | |||
| INJECTION UNIT | A | B | C | |
| Screw Diameter | mm | 40 | 42 | 45 |
| Length/Diameter Ratio | L/D | 22.3 | 20.9 | 18.8 |
| Theoretical Shot Volume | cm | 277 | 306 | 351 |
| Injection Weight(PS) | g | 249 | 275 | 316 |
| Injection Rate(PS) | g/s | 112 | 124 | 142 |
| Plasticizing Capacity | g/s | 20.3 | 22.7 | 27.6 |
| Theoretical Injection Pressure | Mpa | 192 | 174 | 152 |
| Maximum Screw Speed | rmp | 0-220 | ||
| Clamping Unit | ||||
| Clamp Tonnage | kN | 1600 | ||
| Toggle Stroke | mm | 390 | ||
| Space Between tie Bars | mm | 470×420 | ||
| Max. Mold Height | mm | 480 | ||
| Min. Mold Height | mm | 180 | ||
| Daylight Opening | mm | 870 | ||
| Ejector Number | Piece | 5 | ||
| Ejector stroke | mm | 130 | ||
| Ejector tonnage | kN | 46 | ||
| OTHERS | ||||
| System Pressure | Mpa | 16 | ||
| Pump moter Power (servo) | kW | 18.7 | ||
| Heater Power | kW | 8.3 | ||
| Machine Dimension(LxWxH) | mm | 4.8×1.3×1.9 | ||
| Oil tank Capacity | L | 240 | ||
| Machine Weight | t | 3.9 | ||
