UP-130S
Category：
100T-300T
Keywords：
Injection molding machines
Machine mode：
UP-130S

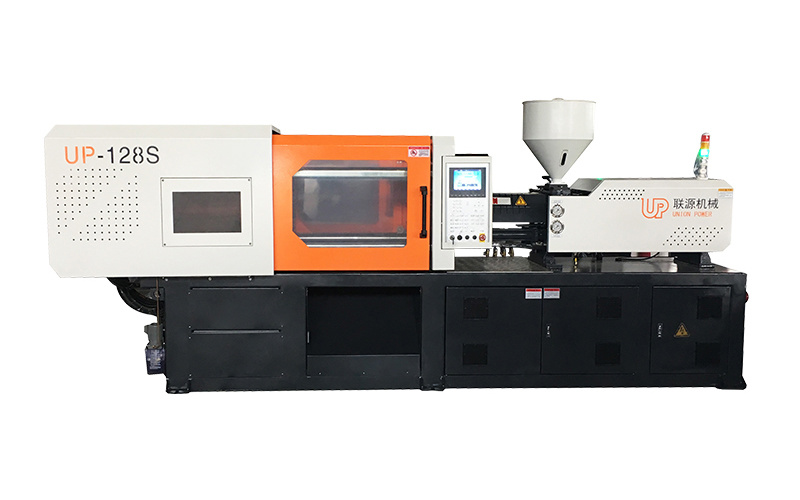

Description : Union Power brand servo motor injection molding machine
Machine condition: new made according to order.
Place of original: Ningbo city, China.
Contact Union Power team for more details:
+86 13705741165 ( phone / wechat / whatsapp )
Product Details
Detailed display
Technical Parameters
| MACHINE MODEL | UP-130S | |||
| International Size Rating | 370/130 | |||
| INJECTION UNIT | A | B | C | |
| Screw Diameter | mm | 38 | 42 | 45 |
| Length/Diameter Ratio | L/D | 22.1 | 20 | 18.6 |
| Theoretical Shot Volume | cm | 214 | 249 | 286 |
| Injection Weight(PS) | g | 183 | 224 | 257 |
| Injection Rate(PS) | g/s | 106 | 117 | 132 |
| Plasticizing Capacity | g/s | 17 | 21 | 25 |
| Theoretical Injection Pressure | Mpa | 186 | 152 | 132 |
| Maximum Screw Speed | rmp | 0-220 | ||
| Clamping Unit | ||||
| Clamp Tonnage | kN | 1300 | ||
| Toggle Stroke | mm | 360 | ||
| Space Between tie Bars | mm | 420×380 | ||
| Max. Mold Height | mm | 400 | ||
| Min. Mold Height | mm | 135 | ||
| Daylight Opening | mm | 760 | ||
| Ejector Number | Piece | 5 | ||
| Ejector stroke | mm | 100 | ||
| Ejector tonnage | kN | 33 | ||
| OTHERS | ||||
| System Pressure | Mpa | 16 | ||
| Pump moter Power (servo) | kW | 11.5 | ||
| Heater Power | kW | 7.6 | ||
| Machine Dimension(LxWxH) | mm | 4.2×1.2×1.9 | ||
| Oil tank Capacity | L | 190 | ||
| Machine Weight | t | 3.2 | ||
