UP-140S
Category：
100T-300T
Keywords：
Injection molding machines
Machine mode：
UP-140S

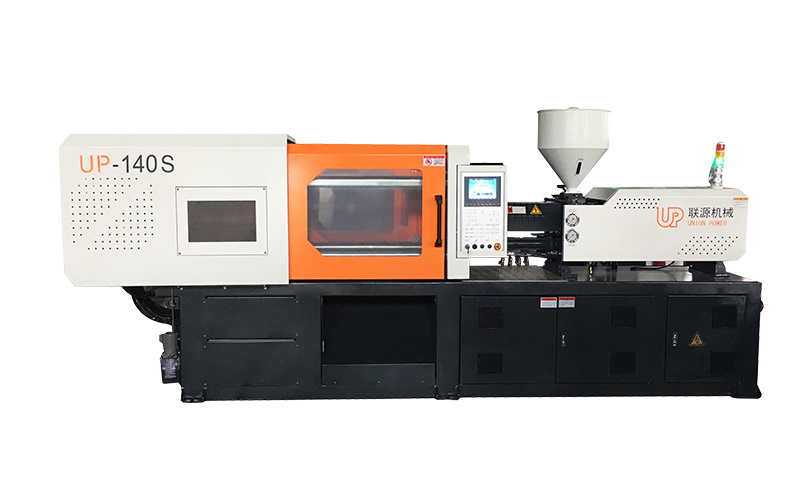

Description : Union Power brand servo motor injection molding machine
Machine condition: new made according to order.
Place of original: Ningbo city, China.
Contact Union Power team for more details:
+86 13705741165 ( phone / wechat / whatsapp )
Product Details
Detailed display
Technical Parameters
| MACHINE MODEL | UP-140S | |||
| International Size Rating | 420/140 | |||
| INJECTION UNIT | A | B | C | |
| Screw Diameter | mm | 40 | 42 | 45 |
| Length/Diameter Ratio | L/D | 21.9 | 20.9 | 19.5 |
| Theoretical Shot Volume | cm | 215 | 263 | 302 |
| Injection Weight(PS) | g | 194 | 237 | 272 |
| Injection Rate(PS) | g/s | 107 | 119 | 136 |
| Plasticizing Capacity | g/s | 19.4 | 21.5 | 26 |
| Theoretical Injection Pressure | Mpa | 179 | 163 | 142 |
| Maximum Screw Speed | rmp | 0-220 | ||
| Clamping Unit | ||||
| Clamp Tonnage | kN | 1400 | ||
| Toggle Stroke | mm | 380 | ||
| Space Between tie Bars | mm | 420×420 | ||
| Max. Mold Height | mm | 450 | ||
| Min. Mold Height | mm | 150 | ||
| Daylight Opening | mm | 830 | ||
| Ejector Number | Piece | 5 | ||
| Ejector stroke | mm | 120 | ||
| Ejector tonnage | kN | 46 | ||
| OTHERS | ||||
| System Pressure | Mpa | 16 | ||
| Pump moter Power (servo) | kW | 15 | ||
| Heater Power | kW | 8.2 | ||
| Machine Dimension(LxWxH) | mm | 4.4×1.2×1.9 | ||
| Oil tank Capacity | L | 190 | ||
| Machine Weight | t | 3.5 | ||
