UP-110S
Category：
100T-300T
Keywords：
Injection molding machines
Machine mode：
UP-110S

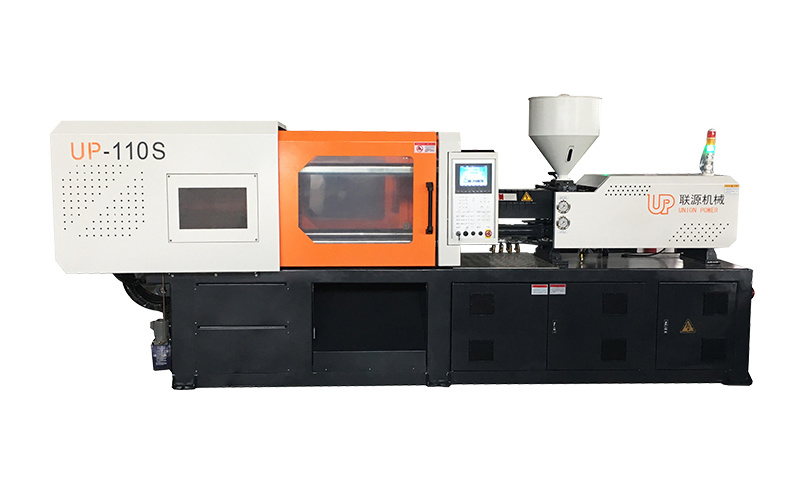

Description : Union Power brand servo motor injection molding machine
Machine condition: new made according to order.
Place of original: Ningbo city, China.
Contact Union Power team for more details:
+86 13705741165 ( phone / wechat / whatsapp )
Product Details
Detailed display
Technical Parameters
| MACHINE MODEL | UP-110S | |||
| International Size Rating | 260/110 | |||
| INJECTION UNIT | A | B | C | |
| Screw Diameter | mm | 36 | 38 | 40 |
| Length/Diameter Ratio | L/D | 21.2 | 20 | 19 |
| Theoretical Shot Volume | cm | 153 | 181 | 201 |
| Injection Weight(PS) | g | 138 | 163 | 181 |
| Injection Rate(PS) | g/s | 94 | 106 | 116 |
| Plasticizing Capacity | g/s | 14 | 16 | 19 |
| Theoretical Injection Pressure | Mpa | 170 | 144 | 130 |
| Maximum Screw Speed | rmp | 0-220 | ||
| Clamping Unit | ||||
| Clamp Tonnage | kN | 1100 | ||
| Toggle Stroke | mm | 325 | ||
| Space Between tie Bars | mm | 360×360 | ||
| Max. Mold Height | mm | 380 | ||
| Min. Mold Height | mm | 135 | ||
| Daylight Opening | mm | 705 | ||
| Ejector Number | Piece | 5 | ||
| Ejector stroke | mm | 90 | ||
| Ejector tonnage | kN | 33 | ||
| OTHERS | ||||
| System Pressure | Mpa | 16 | ||
| Pump moter Power (servo) | kW | 11.5 | ||
| Heater Power | kW | 7.5 | ||
| Machine Dimension(LxWxH) | mm | 3.8×1.2×1.7 | ||
| Oil tank Capacity | L | 150 | ||
| Machine Weight | t | 3 | ||
