Household products injection molding machine
Category：
Household products injection molding machine
Keywords：
Injection molding machines
Application：
Injection molding machine to make home use household products, one same machine can make different products with change the mould.
Whole line：
Crate box basket machine+mould+accessories
Machine condition: new made according to order.
Place of original: Ningbo city, China.
Contact Union Power team for more details:
+86 13705741165 ( phone / wechat / whatsapp )
Tel:
Product Details
Detailed display
Technical Parameters

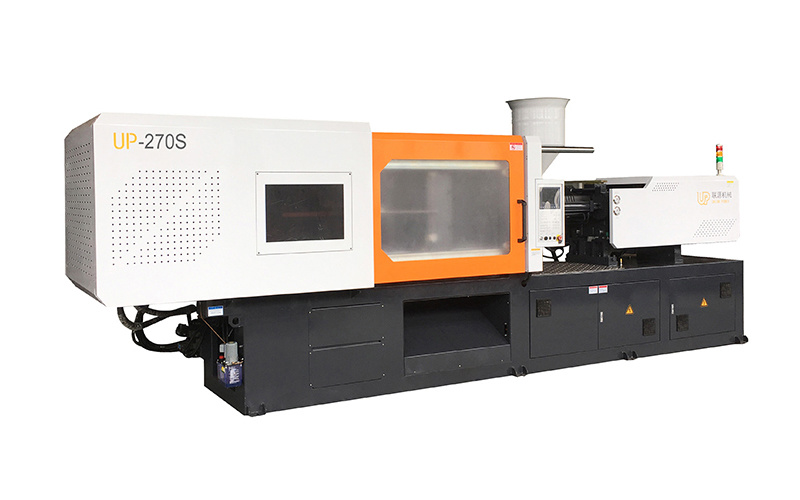

| MACHINE MODEL | UP-270S | |||
| International Size Rating | 1180/270 | |||
| INJECTION UNIT | A | B | C | |
| Screw Diameter | mm | 55 | 60 | 65 |
| Length/Diameter Ratio | L/D | 21.8 | 20 | 18.5 |
| Theoretical Shot Volume | cm | 594 | 707 | 830 |
| Injection Weight(PS) | g | 535 | 636 | 746 |
| Injection Rate(PS) | g/s | 208 | 252 | 300 |
| Plasticizing Capacity | g/s | 31.2 | 38.9 | 47.6 |
| Theoretical Injection Pressure | Mpa | 200 | 168 | 143 |
| Maximum Screw Speed | rmp | 0-200 | ||
| Clamping Unit | ||||
| Clamp Tonnage | kN | 2700 | ||
| Toggle Stroke | mm | 550 | ||
| Space Between tie Bars | mm | 580×580 | ||
| Max. Mold Height | mm | 580 | ||
| Min. Mold Height | mm | 220 | ||
| Daylight Opening | mm | 1130 | ||
| Ejector Number | Piece | 9 | ||
| Ejector stroke | mm | 150 | ||
| Ejector tonnage | kN | 70 | ||
| OTHERS | ||||
| System Pressure | Mpa | 16 | ||
| Pump moter Power (servo) | kW | 27.8 | ||
| Heater Power | kW | 16 | ||
| Machine Dimension(LxWxH) | mm | 6.2×1.65×2.25 | ||
| Oil tank Capacity | L | 400 | ||
| Machine Weight | t | 8.3 | ||
